Liaison XL
By:
Diasorin
Category:
Pathology
Subcategory:
Microbiology
Immunochemistry Analyzer

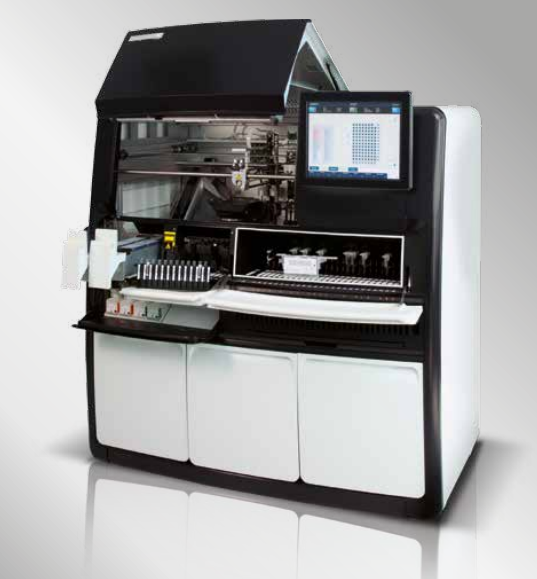

LIAISON® XL is a fully automated chemiluminescence analyzer, performing complete sample processing (sample pre-dilutions, sample and reagent dispensing, incubations, wash processes, etc.) as well as measurement and evaluation.
The innovative features of the system allow LIAISON® XL to improve efficiency in the immunoassay laboratories.
Fully automated solution
Quality of results
Flexible configuration
High efficiency
Assay technology
LIAISON® XL is a fully automated chemiluminescence analyzer, performing the complete sample processing. LIAISON® XL adopts a “Flash” chemiluminescence technology (CLIA) with paramagnetic microparticle solid phase. The same technology is also used on the LIAISON® analyzer offering a perfect compatibility between the systems.
Reagents Area
The reagents area is temperature controlled. The loading bay for reagents allows continuous loading of the LIAISON® XL system of Integrals or Ancillary reagent. For clarity, an LED below each lane indicates the relevant usage status. Up to 25 integrals and up to 4 ancillary reagents can be loaded at the same time. Integrals can be loaded directly in one of the 25 lanes according to the specifications of the LIAISON® XL, multiple of the same Integral can be present in the reagent area at the same time if needed.
Disposable sample tips/cuvettes
No sample carry over is observed on the LIAISON® XL due to adoption of single-use sample tips and single use reaction module (cuvettes). The quantity of cuvettes and sample tips on board is monitored by the instrument software. Due to the large storage of disposables on board, the LIAISON® XL permits a extended walk away time.
Sample area
The samples are loaded using 10 racks, each allowing space for 12 samples for a total of 120 samples in continuous loading. Different sized sample tubes can be loaded according with LIAISON® XL software indications. All racks and samples are identified via a bar code reader and any identification problems (mis-read, etc) are reported to the user.
LIAISON® XL performance
The throughput is optimized by splitting the pipetting phases of reagents and samples into different cycles. The innovative technical solution used on the LIAISON® XL, allows double washing capacity and allows the incubator to host up to 80 cuvettes. The optimization of the assay process maintains the throughput of the system as high as possible.
